Sacramento’s built environment expanded rapidly after the Gold Rush, spreading from the original grid near the waterfront eastward across the American River floodplain. That history matters geotechnically: much of the central city and its older suburbs sits on deep sequences of Holocene alluvium deposited by the Sacramento and American Rivers. In our experience, the SPT (Standard Penetration Test) remains the workhorse investigation method for these deposits. Crews mobilize a split-spoon sampler driven by a 140-pound hammer falling 30 inches, recording the number of blows required for each 6-inch increment. The resulting N-values give engineers a direct, repeatable measure of relative density in sands and consistency in silts and clays that dominate the valley profile. When a developer proposes a mid-rise in Midtown or an industrial tilt-up in Natomas, the first question the geotechnical team asks is what the blow counts look like at depth. The SPT answers that question while simultaneously recovering a disturbed sample for visual classification and lab index testing, making it indispensable for the layered, variable stratigraphy that defines Sacramento’s subsurface.
In Sacramento's floodplain environment, a 6-inch split-spoon sample and its blow count tell you more about foundation risk than a dozen borehole logs without SPT data.
Scope of work in Sacramento
Risks and considerations in Sacramento
Sacramento sits in a seismically active region influenced by the Coast Range fault systems and the Sierra Nevada foothills. The California Geological Survey maps significant portions of the city inside liquefaction hazard zones, particularly the younger alluvial and artificial fill deposits that underlie the downtown core, Natomas, and the Pocket area. SPT blow counts are the primary input parameter for simplified liquefaction triggering procedures following the Seed-Idriss framework. When corrected SPT N-values drop below 15 in saturated sands within the upper 50 feet, the potential for cyclic mobility and lateral spreading becomes a serious design consideration. The risk compounds in areas like the River District and along the Sacramento River levees, where groundwater is routinely encountered within 8 to 15 feet of the surface. Standard practice in these zones involves drilling SPT borings on a tight grid, measuring hammer energy to apply correction factors, and pairing the results with liquefaction analysis to estimate settlements and inform mitigation strategies such as stone columns or deep soil mixing.
Our services
The SPT serves as the backbone of our Sacramento subsurface investigation program, but it is always integrated with complementary testing to build a complete geotechnical model. The following services are typically combined with SPT borings depending on project scope and site conditions.
Standard Penetration Test Drilling

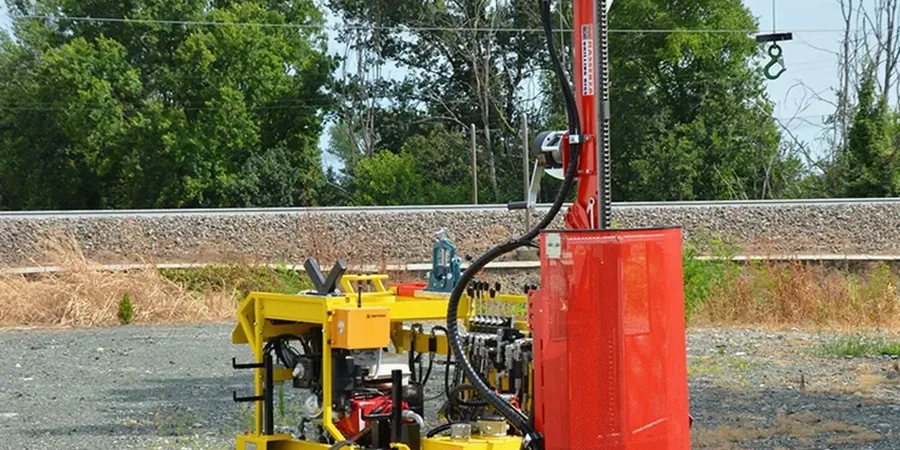

Truck-mounted or track-mounted drill rigs advancing hollow-stem augers or rotary wash borings. We record blow counts at 2.5-foot intervals or at every change in stratum, providing the N-value profile that feeds bearing capacity and settlement calculations.
Laboratory Index Testing
Split-spoon samples from SPT borings are delivered to our ISO 17025-accredited lab for moisture content, grain size distribution, and Atterberg limits. These index properties confirm field classifications and are required for correlating N-values with engineering parameters.
Liquefaction Triggering Analysis
Using corrected SPT N-values, groundwater depth, and seismic acceleration parameters from the USGS hazard maps, we perform screening-level and detailed liquefaction evaluations per the NCEER/NSF workshop recommendations and current ASCE 7 methodology.
Quick answers
How much does an SPT boring program typically cost in the Sacramento area?
For a single exploratory SPT boring drilled to 30 or 40 feet in typical Sacramento alluvium, you can expect to invest between US$490 and US$690 per boring, depending on access, depth, and the number of borings in the program. Mobilization, traffic control, and lab testing are additional line items we detail in the proposal.
How are SPT blow counts corrected for hammer energy in Sacramento practice?
We measure the energy delivered by the hammer system using an instrumented rod and apply an energy ratio correction to the raw N-value. This yields N60, the blow count normalized to 60 percent of the theoretical free-fall energy. The correction is critical in Sacramento because safety hammers with rope-and-cathead systems can have energy ratios ranging from 45 to 70 percent.
At what depth should SPT borings terminate for a typical commercial building in the valley?
It depends on the foundation type and the stratigraphy, but our Sacramento projects generally extend borings to a depth where the stress increase from the footing becomes less than 10 percent of the existing overburden stress, or where a competent bearing stratum with N-values above 30 is encountered. For a two-story tilt-up in Natomas, that often means 40 to 50 feet.
Can SPT data distinguish between the different floodplain deposits we see across Sacramento?
Yes, the combination of blow counts and recovered soil samples allows us to map the transition from stiff Pleistocene terrace deposits to soft Holocene channel and overbank sediments. Low N-values with high moisture content and organic staining are characteristic of the basin deposits, while higher blow counts and cleaner sands indicate natural levee or older alluvial fan material.
What is the difference between SPT and CPT for Sacramento sites, and when would you recommend one over the other?
The SPT recovers a physical soil sample, which is essential for classification of the variable silts and clays found here. The CPT provides continuous, high-resolution tip resistance and pore pressure data without a sample. We often recommend starting with SPT borings to characterize the stratigraphy and then supplementing with CPT soundings when we need to refine the vertical profile between borings or evaluate liquefaction in sands with greater precision.
